H48

H48 CNC lathe is a patented product of our company, with patent number ZL201820777626.7. It is a type of integrated asynchronous bed head and ZL201821895511.4 CNC lathe with a direct drive spindle.

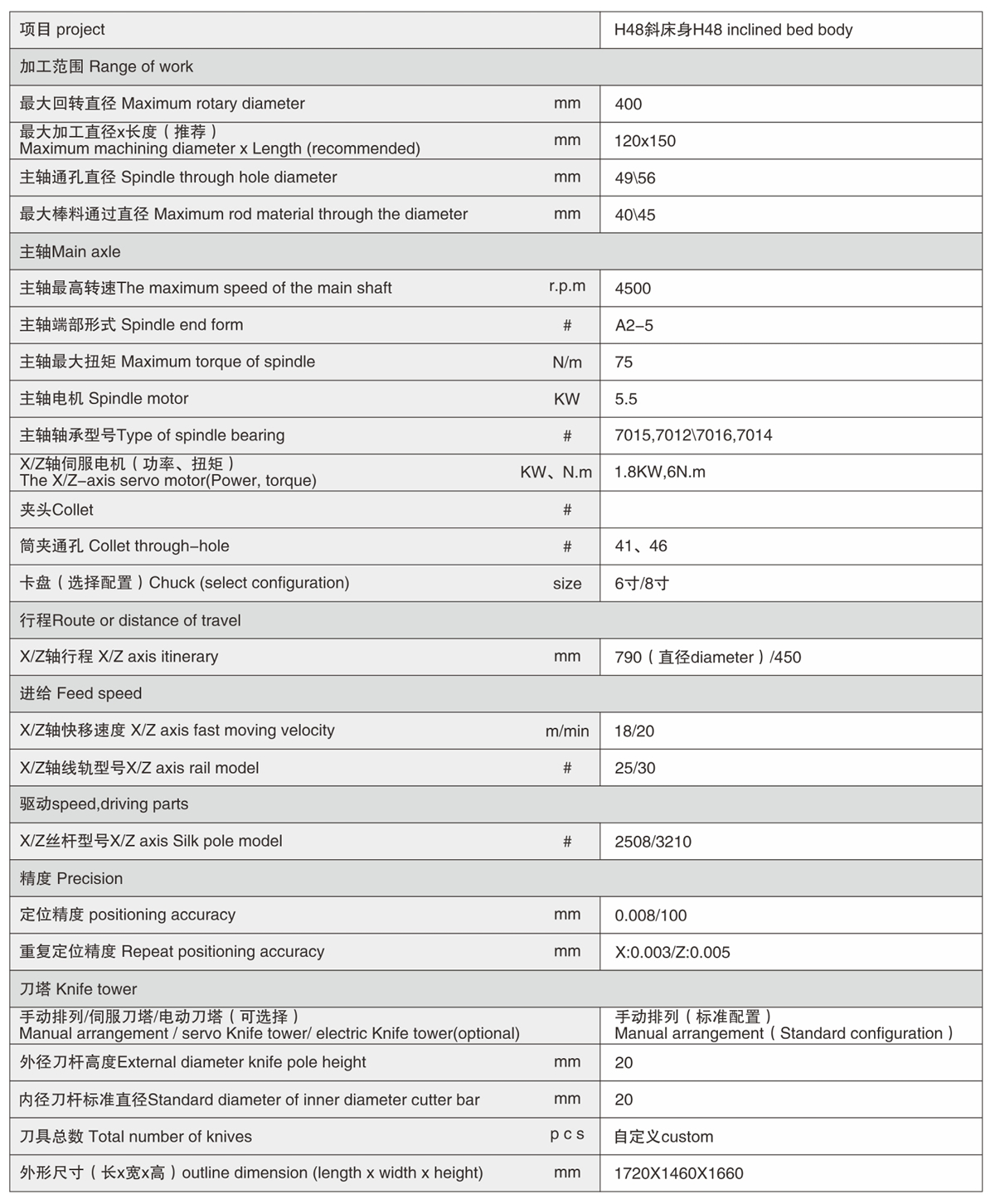

This CNC lathe comes standard with a five axis (XZCAB) semi closed loop control CNC lathe system.

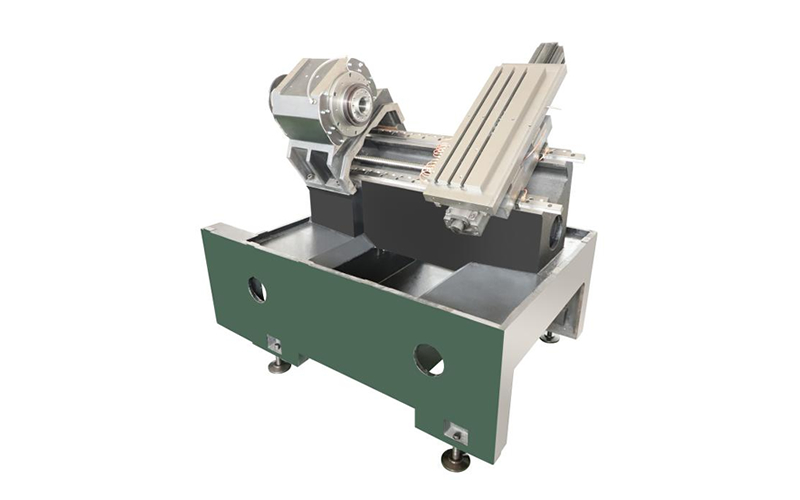

The standard configuration is a three-axis control cxz, and the host adopts a 45 ° inclined guide rail layout. The X drag plate is an integrated drag plate.

The X-axis and Z-axis are in the same plane.

The spindle (C-axis) is an AC asynchronous servo spindle directly driven by a driveless mechanism, which achieves position control and speed control. The spindle can rotate, feed, index, and stop accurately, and can be extended to two axes in the later stage on the drag plate.

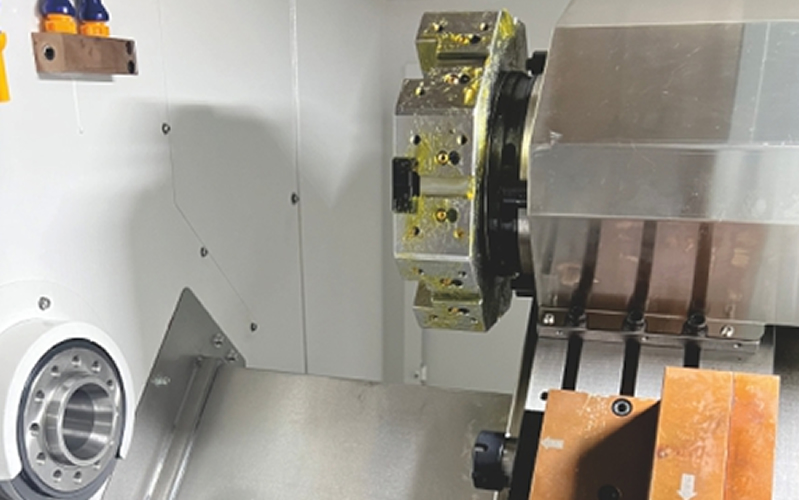

Spindle clamping is achieved by using a hydraulic rotary cylinder to drive a three jaw chuck or an elastic chuck to clamp the workpiece.

X. Z is driven by ball screws, rolling linear guides, and the drag plate can automatically eliminate the reverse clearance of the drag plate by gravity; The guide rail protection adopts full protection and adopts absolute value AC servo motor.

Machine tools have good dynamic characteristics, high accuracy, and strong rigidity.
